Y Series High Voltage Three Phase Induction Motors
Features
High efficiency, energy saving.
Low vibration.
Reliable performance and easy installation and maintenance.
The frame is made of steel plate being welded up into form of square tank shape with light weight and firm rigidity.
Stator is an outer-press-assembly structure.
The stator winding is F grade insulation at the winding’s end part being firm banded.
The whole stator has been treated with VPI technology to make stator with a robust body and good electric and moisture proof.
The rotor can be developed into casting aluminum rotor or copper bar rotor.
The copper cage rotor guide bar and end ring are welded by intermediate frequency, and the copper guide bar diameter groove is treated with solid technology to make it have high reliability.
Application
General purpose including machine tool, compressor. water pump. ventilator, conveyor, crushing mill, it is also used as the primitive for the mechanical industry, petroleum industry, power plant and so on.
Performance Data

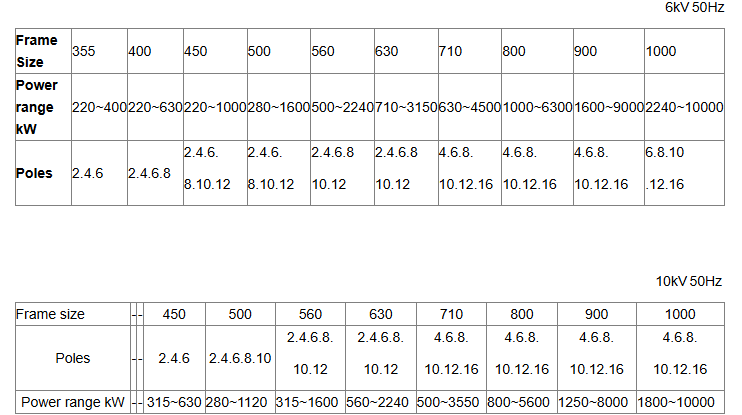

Common frame size corresponding to the power:
Remark: For the other special rated powers, please contact with us.
