YBBP Series Flameproof Variable-frequency Adjustable-speed Induction Motors
Features
Stepless speed regulation operation in a wide range
Good performance
Energy saving
High-grade insulation material and special technological withstand high frequency pulse impact
Separate fan for forced- ventilation
Frequency range of 2P, 4P: 5-60Hz (frame size 225-355 of 2P and 355 4P)
5-100Hz (frame size 80-200 2P)
Frequency range of 6P, 8P, 10P: 5-100Hz
Application
Ideal for the plant or workshop (Ex dⅡAT4、dⅡBT4) where dangerous explosion mixture of air with T1-T4 class ⅡA ⅡB flammable substance in the form of gas or vapor is present.
Performance Data

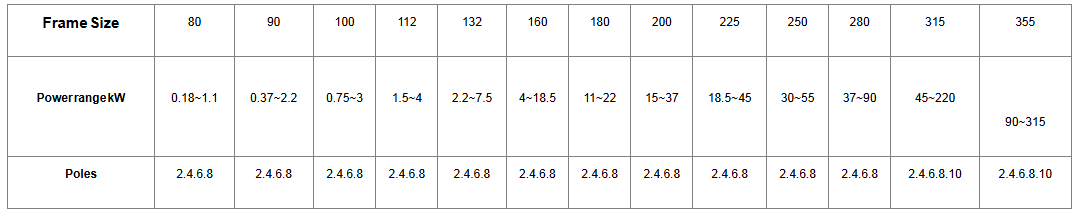

Common frame size corresponding to the power:
Remark: For the other special rated powers, please contact with us.

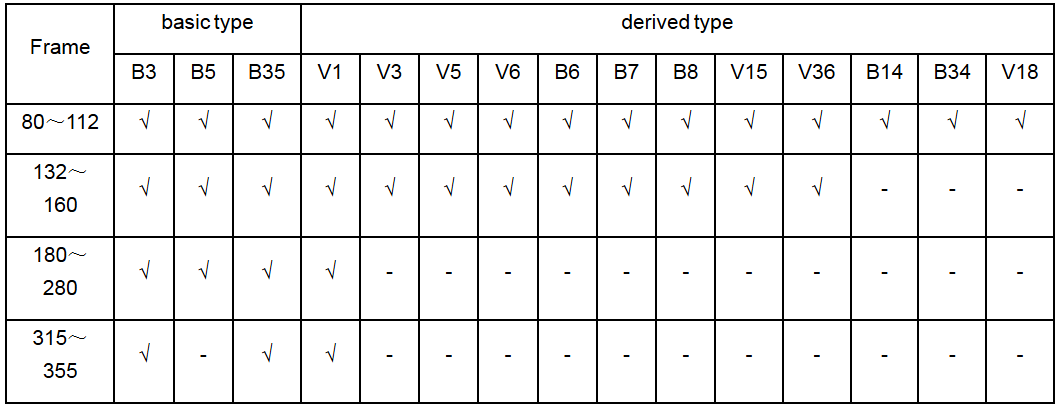

Mounting Types
