YE3 Series IE3 Super high Efficiency Three phase induction motors
Features
Beautiful profile
High efficiency and energy saving (IE3 of IEC60034-30 and level 2 of GB18613-2012)
Class F VPI insulation
Low noise
Slight vibration
Reliable performance
Flexibility of application
Inverter Duty Rated: 2:1CT & 10:1VT at 380V 50 Hz
High lock rotor torque
Junction box equipped with glands
F2 mounting position, F1, F3 is available too
Bidirectional fan
Oversized ball bearings on both ends for direct coupling
Application
Designed to meet international standards as replacement motors for overseas applications and machinery such as pumps, conveyors, fans, crushers, compressors, mixers and more.
Performance Data

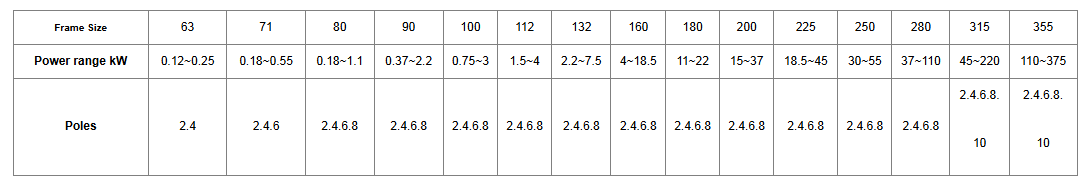

Common frame size corresponding to the power:
Remark: For the other special rated powers, please contact with us.

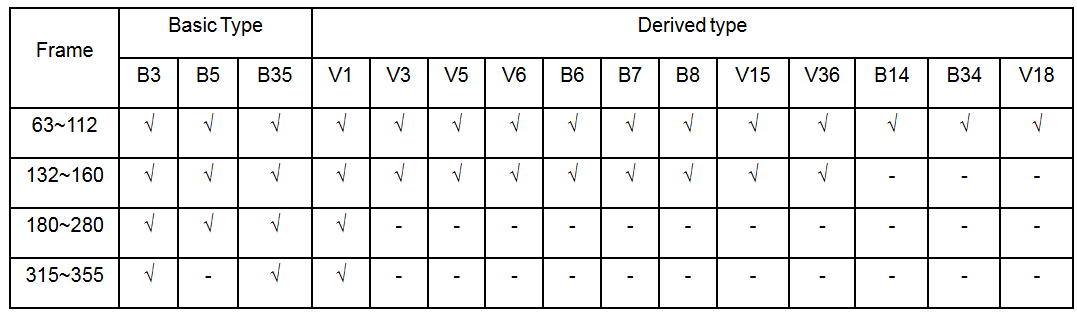

Mounting Types
