YR High Voltage Three-Phase Induction Motors
Features
High efficiency, energy saving.
Low vibration.
Reliable performance and easy installation and maintenance.
The frame is made of steel plate being welded up into form of square tank shape with light weight and firm rigidity.
Stator is an outer-press-assembly structure.
The stator winding is F grade insulation at the winding’s end part being firm banded.
The whole stator and rotor has been treated with VPI technology to make stator and rotor with insulation and moisture resistance.
Silver brazing is used between rotor coils and between copper strip and coils to ensure the reliability of motor operation.
Application
General purpose indlucing ventilator, compressor, water pump, crushing mill, cutting machine, transportation machine and other equipments. It is also used as the primitive for the mine, machanical industry; petroleum & chemistry industry; power plant and so on.
Performance Data

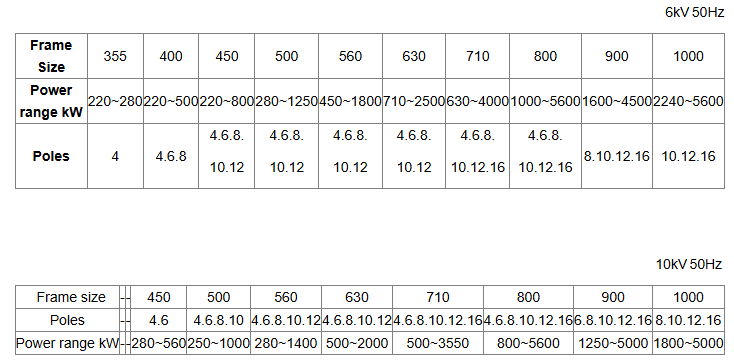

Common frame size corresponding to the power:
Remark: For the other special rated powers, please contact with us.
